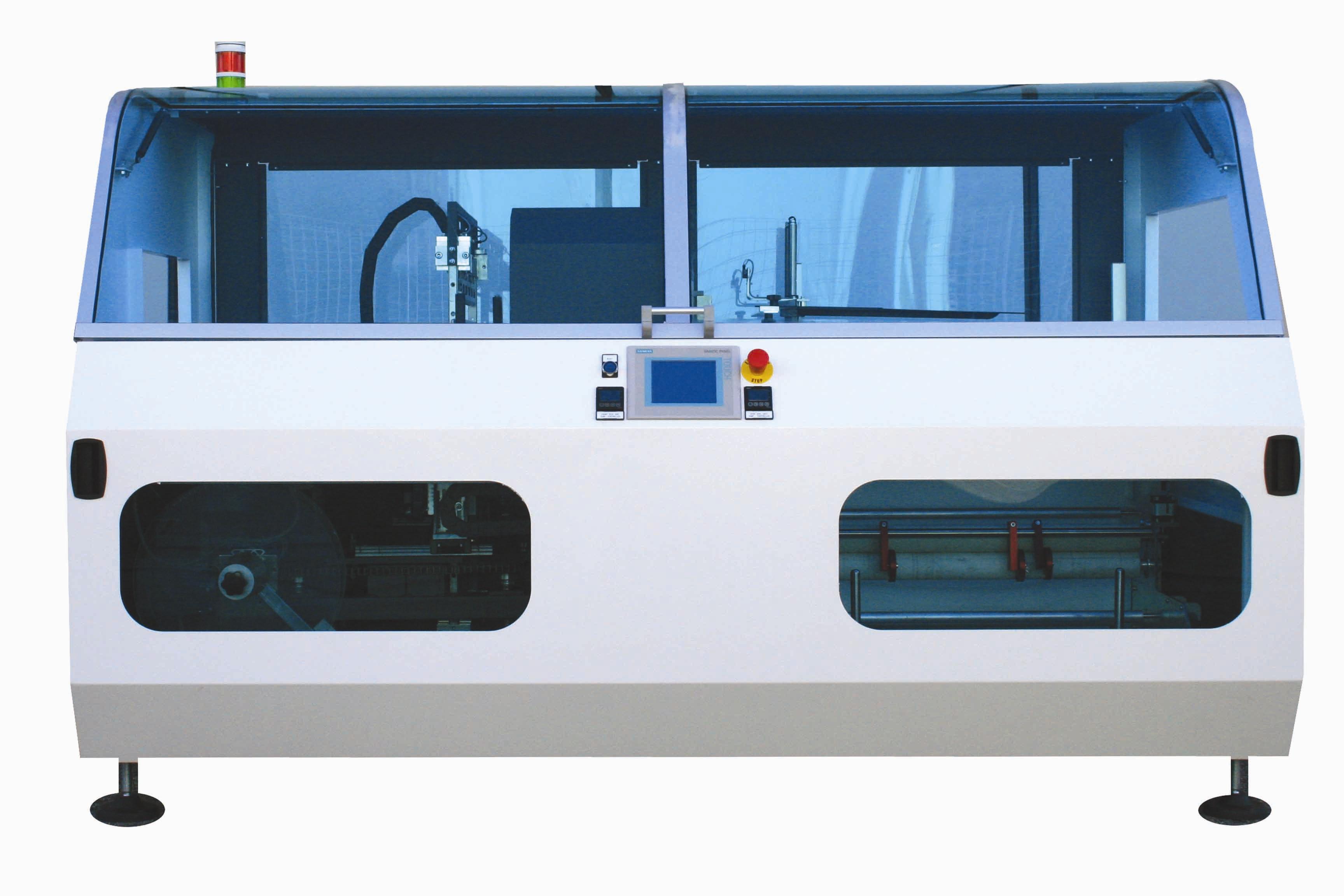

FULLY  AUTOMATIC  SHRINK  WRAPPING  LINE  FOR  SIDE  SEALING
       MACHINE  MOD. F5000CONT  WITH  SHRINKING  TUNNEL  TD4500

CLICK HERE FOR VIDEO





  • Speed up to 80 pcs/min
  • BOX MOTION- PERFECT ,TIGHT SEALING

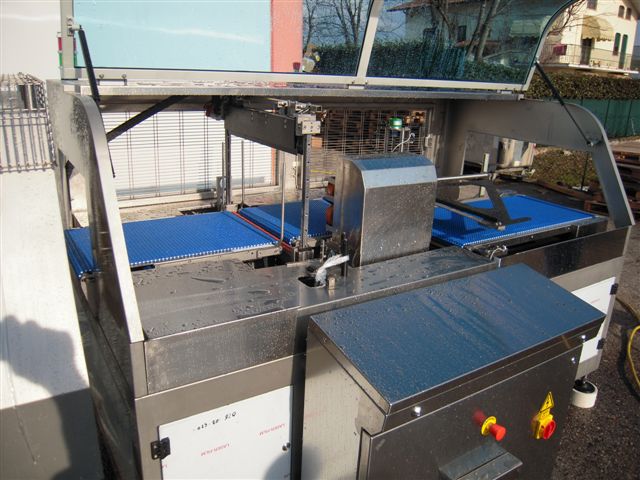

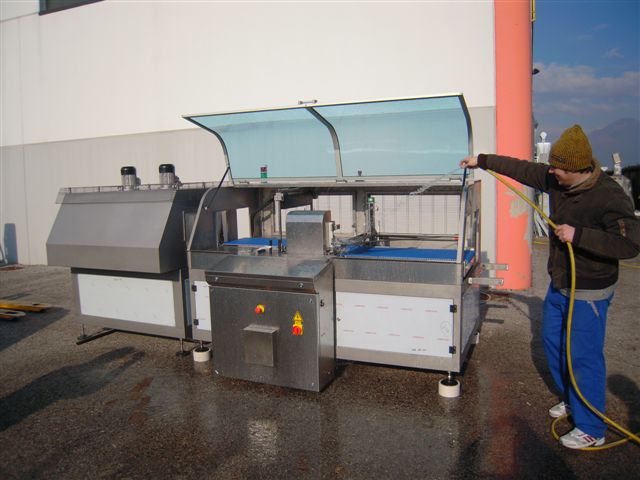

Wash Downs Systems Available.













Spec sheet

STANDARD FEATURES

  • Heavy duty steel frame construction
  • In-feed  transport  by  roller  driven with frequency and speed adjusted
  • Maintenance free sealing system, continuously heated with integrated separating knife without sealing bands, separating wire or Teflon  tape
  • Touch screen control with step by step product set up and operation interface
  • Teflon coated rotary wheel side seal will seal all types of film
  • Closing conveyor for running small packages
  • Hot knife cross seal bar with digital temperature control
    • Side sealing made by sealing unit composed by rotary hot wheels  and transversal sealing bar that cuts in seal film on the front and back side of the products (with Polyolefine);
  • Automatic product separation conveyor for randomly spaced products
  • Automatic motorized inverting triangle
  • Automatic motorized cross seal and side seal height adjustment
  • Siemens PLC Control and solid state electronics allows for easy integration of feeders, collators and accumulators.
  • Variable speed control
  • Pinwheel film perforator air evacuation system- no film tearing
  • Self diagnostic feature will alert operator of problem
  • Programmable memory to store 30 package sizes
  • Easy access electrical control panel with solid state relays and contactors
  • Powered film scrap wind up with built in alarm when full
  • Easy load film rack- no lifting of roll overhead
  • No product- no cycle automatic machine stop
  • Horizontal and vertical photo eye provide automatic adjustment of package length
  • Machine is equipped with lexan security cover
  • Flighted in-feed conveyor with adjustable
  • CE approved.





  ADVANTAGES:

 - Touching belts, useful for the packaging of little products;
 - Adjustable opening of the sealing bar in order to be able  to increase the speed of  production;
    - Sealing  bar, with hot blade and with digital control of the temperature, easily detachable for maintenance;
- Inverter on every motors;
- Film dispenser unit placed internally in the machine, aesthetically nicer, safer and less bulky;
- Film unwind unit with alarm when it’s full;
- Motorized automatic film inverting head;
- System of evacuation of the air   made by perforators;
- Footsies or wheels, for an easy move,
- Vertical and horizontal photocells,for a rapid and proper detection  of the product, they allow the automatic adjustment
   of the length of the product;
- Functions & parameters are easily adjustable by the tactile touch  screen;
- Programmable memory for the memorization of 30 different dimensions of products;
- Connection to Internet for the survey of problems
- Control through PLC SIEMENS and the solid electronic allows to integrate easily feeders, loaders and conveyors
- Connectors are already predisposed for the addition of conveyors  in entrance and in exit;
- Machine is already prepared to be placed in a line;
- Connector in every motor to allow a rapid change;
- Control Panel with  low voltage, approved by the CE, minimizes the risk of shock, and overcomes the safety standards
   OSHA ( European  agency for the safety and the health on the work ).




BOX MOTION MODELS:

In continous motion machines, instead sealing bar keeps on moving, not only vertically but also horizontally, following the products and avoiding start-stop produced by intermittent fix bar.
As a consequence the machine can reach high speed, thanks to the stability given by this box motion system.

In order to reach always higher speed and increase customer’s possibilities, we can offer the machine not only with pneumatic closure of sealing bar (standard one) but also in a version with motorized sealing bar or and servo motors.





   TECNICHAL SPECIFICATION MACHINE MODEL F5000CONT

Width of Sealing Bars :

          500 mm

Product’s Max. Width :

400 mm

Product’s max. Length :

endless

Product’s max Height :

200 mm – withOPTIONAL up to400 mm

Film Width :

650 mm

Reel Diameter :

350 mm

Electric Supply :

220-400 V 50-60 Hz monofase

Power :

6 Kw

Air:

6 bar costant

Working Height :

900 +/- 50

Machine’s Dimension :

L. 3500 X 1200 W X 1550 H

Weight :

800 kg



  FULLY AUTOMATIC LINE WITH TUNNEL TD4500

TUNNEL MOD. TD4500- DOUBLE CHAMBER

Saving the space: tunnel is very compact
The tunnel is horizontally MOVABLE in order to be able to adjust it with the entrance of the product
The tunnel has the same shape of the machine, so it can be incorporated-one block with the machine or separated by a conveyor.

   STANDARD FEATURES

  • Fully re-circulating air chamber
  • Variable air velocity control
  • Live roller rod conveyor
  • Variable speed drive
  • Safety clutch
  • Automatic tunnel cool down with shut off
  • Thermic protection for change in tension
  • Usable with all types of film – P.E. film needs the tefloned belt
  • Live roller rod conveyor (roller system is standard but tunnel can be provided also with tefloned
    net or metallic net);Bars can turn or can  also stay still depending in which kind of film it’s used







   TECNICHAL SPECIFICATION MACHINE MODEL TUNNEL TD4500



Chamber’s dimension



L1435x W 400x H 220 mm

Speed

Fino a 24 m/min

Electric  supply

400 V 50 Hz/3PH+N+T

Power

18 Kw

Color

RAL 9007

Working Height

900 +/- 50

Machine dimension

L. 1435 X 1170 W X 1570 H





      COMPONENTS:

Motors:
Reducers:
Bearings and Supports :
Pneumatics’ components :
PLC :
Electro - mechanic’s components :
Inverter  :
Rele’ :

ABB
MOTOVARIO
SKF
KUHKNE
MITSHUBISHI
MITSHUBISHI
MITSHUBISHI
OMRON
