FEATURES

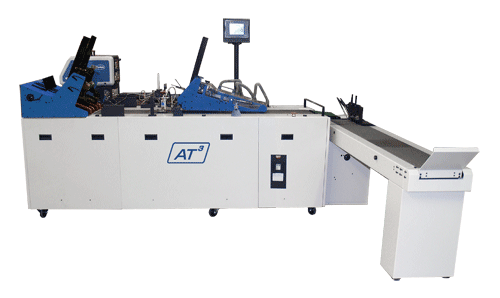

The AT3 comes complete with a Force Flex
Synchronized Servo Driven card feeder, PLC
with Touch Screen Control, Integrated Hot Melt
Glue System and a 6' collection conveyor.

ADVANTAGES TO INVESTING IN A PRODUCT ATTACHING SYSTEM

• Tolerance Range: 1/8"
• One or Two Card Applications
• Includes Force Flex
• Quick Return On Investment
• Easily Integrates With Existing Equipment
• Comes With A 6' Conveyor
• Synchronized Servo Driven Card Feeder
• Simple Integration

PRODUCT ATTACHING SYSTEM
This system includes:

        Vacuum Transfer Base

• PLC Touch Screen Control
• 3 Channel Vacuum Belt
• Variable Speed
• In-Line Design

        Force Flex

• Product Guides
• Dynamic Rotation Technology
• "The Shaker" plate for accurate feeding

        Synchronized Card Feeder

• Servo Drive
• Overhead Vacuum Feed
• Precision Placement
• Adjustable on the fly
• Double miss & jam detection
• One or two card applications

       6' Collection Conveyor

• 90 degree or In-line
• 10" wide belt
• Variable Speed
• Up-gradable to 9' collection conveyor or 9' sorting conveyor

        Nordson Glue System

• Durablue4 Tank
• Heated Hose
• Pneumatic Glue Gun
• Daily timer and standby system
• Nozzle Size: 12

TECHNICAL SPECIFICATIONS

• Maximum Carrier Size: 12" W x 14" L
• Maximum Carrier Size MM: 304.8mm W x 355.8mm L
• Minimum Carrier Size: 3.5" W x 4" L
• Minimum Carrier Size MM: 88.9mm W x 101.6mm L
• Maximum Card Size: 3.3" W x 6"L
• Maximum Card Size MM: 83.82mm W x 152.4mm L
• Minimum Card Size: 2.125" W x 2.125" L
• Minimum Card Size MM: 53.975mm W x 53.975mm L
• Paper & Card Magazine Capacity: 18"  - 457.2mm (Product Dependent)
• Tolerance Range: 1/8"
• Electrical: 2 drops of 240VAC, 1PH, 30AMP
• Speed (Product Dependent):  up to 20,000 pieces per hour
• Drive Motor: Variable DC
• Air Pressure: 90 PSI

APPLICATIONS

• Phone Cards
• Real Estate Cards
• Business Cards
• Credit Cards
• Insurance Cards
• Gift Cards
• Mag Stripe Reading

STANDARD FEATURES

• Touch Screen for on the fly adjustments
• Force Flex
• Hot Melt Glue System
• Synchronized Servo Driven Card Feeder
• 6' Collection Conveyor

OPTIONS

• Mag Stripe Reading
• Matching
• Verification
• Divert
• Plow Folding
• 9' or 12' Collection Conveyor
• 6', 9' or 12' Sorting Conveyor

All materials are product dependent. Please send samples for testing. Contact debra.eaton@pb.com  for more information.

COMPLIMENTARY PRODUCTS

Plow Fold - click for more information

 KEY FEATURES

Centrally located touch screen allows for quick setup of all features.

Force Flex Technology feeds a wide range of products..



Synchronized card feeder for 1 or 2 card applications.



In-line mag stripe reader.

Tech Note: Sure-feed's synchronized card feeder will operate at speeds of 25K / hr. and hold a 1/8" tolerance range. The overhead vacuum card carrier belt elimnates slipping of all styles of cards. Even Embossed Cards!!

Output transport extension for in-line applications.
